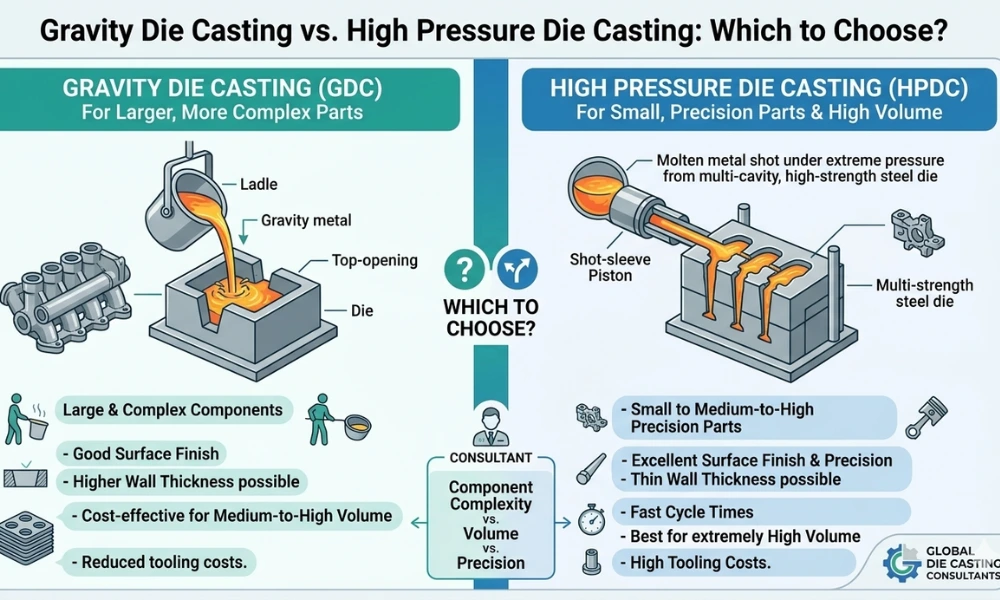

Gravity Die Casting vs High Pressure Die Casting: Which to Choose?

▶ HPDC produces cycle times of 15 to 45 seconds versus GDC’s 2 to 5 minutes, making HPDC the choice for annual volumes above 10,000 units.

▶ GDC tooling costs INR 80,000 to INR 5 lakh, significantly less than HPDC dies which start from INR 3 lakh and can reach INR 15 lakh for complex tools.

▶ Gravity die casting typically achieves Ra 3.2 to Ra 6.3 surface finish; HPDC achieves Ra 1.6 to Ra 3.2 or better with polished inserts.

▶ HPDC minimum wall thickness is 0.8 mm versus 2.5 mm for GDC, giving HPDC a clear advantage for thin-wall, lightweight components.

▶ GDC produces lower porosity than HPDC in thick-section parts above 6 mm because of slower, controlled filling without trapped air.

▶ GDC is the preferred process for motor housings, pump bodies and structural brackets above 1 kg requiring good mechanical properties.

▶ HPDC is preferred for thin-wall components below 500 g requiring high volume output and tight dimensional tolerances.

Introduction: The Process Decision That Shapes Total Programme Cost

Choosing between gravity die casting vs high pressure die casting is one of the most consequential decisions in a new component programme. The wrong choice costs money through either unnecessarily high tooling investment for a low-volume part, or through scrap and rework caused by selecting a process that cannot hold the required tolerance or wall thickness. This guide gives design engineers and procurement managers a structured comparison framework so the right process is selected before tooling drawings are issued.

QUICK SPECS BOX

Parameter	Gravity Die Casting	High Pressure Die Casting
Typical cycle time	2 to 5 minutes	15 to 45 seconds
Minimum wall thickness	2.5 mm	0.8 mm
Dimensional tolerance	+/-0.3 mm to +/-0.6 mm	+/-0.1 mm to +/-0.3 mm
Tooling cost range	INR 80,000 to INR 5 lakh	INR 3 lakh to INR 15 lakh+
Economical volume range	500 to 20,000 units/year	5,000 to 500,000+ units/year
Surface finish (as-cast)	Ra 3.2 to Ra 6.3	Ra 1.6 to Ra 3.2

Metric	Data	Source
India aluminium casting market size 2024	USD 3.8 billion	IBEF Industry Report 2024
Share of HPDC in Indian aluminium casting output	Approx. 55 percent by volume	Industry estimate
Share of GDC/permanent mould in India	Approx. 25 percent by volume	Industry estimate
Pune area casting manufacturers (HPDC + GDC)	300+ active units	CII Pune 2024
Average tooling life HPDC (H13 steel)	80,000 to 120,000 shots	Industry estimate
Average tooling life GDC (H13 or H11 steel)	25,000 to 60,000 pours	Industry estimate
CAGR India aluminium die casting 2024-2029	7.4 percent	Industry estimate

How Gravity Die Casting Works

Gravity die casting — also called permanent mould casting — pours molten aluminium alloy into a pre-heated steel or cast-iron die under gravity alone, with no external pressure applied during filling. The die is typically made from H13 or H11 tool steel and is designed to split along a parting line for part removal after solidification.

Tilt-pour variants rotate the die and attached ladle together to control metal flow and reduce turbulence, improving mechanical properties in critical sections. Cores are usually sand or collapsible metal to produce internal cavities. Cycle times of 2 to 5 minutes are typical, which limits annual output per machine to 10,000 to 25,000 pours depending on part weight and cooling arrangement.

The slower filling speed and absence of injection pressure mean that GDC parts have lower porosity in thick-section areas compared to HPDC. This makes GDC the preferred process for safety-critical structural parts where porosity-free sections are required for pressure tightness or fatigue life.

How High Pressure Die Casting Works

HPDC injects molten aluminium at pressures of 400 to 1,200 bar through a cold-chamber machine into a hardened H13 steel die. Fill times measured in milliseconds mean the metal is moving at 30 to 50 metres per second through the gate, which produces exceptionally fine surface detail and very thin walls in complex geometries.

The pressure maintained during solidification suppresses gas porosity in the bulk of the casting, though the extreme fill velocity can trap surface-layer porosity in the gate-proximal zones. This is why HPDC parts intended for structural load paths are often processed with vacuum-assisted die casting to remove dissolved gases before injection.

Shot control — plunger speed, injection pressure profile, and intensification pressure — determines part quality more than almost any other process variable. Well-controlled HPDC with consistent die temperature management produces parts with dimensional repeatability within +/-0.1 mm across tens of thousands of shots.

Process Comparison: Head to Head

Comparison Criteria	Gravity Die Casting	High Pressure Die Casting	Better Process For
Cycle time per part	2 to 5 minutes	15 to 45 seconds	High volume: HPDC
Min wall thickness	2.5 mm	0.8 mm	Thin walls: HPDC
Porosity (thick sections)	Lower porosity	Higher risk	Structural: GDC
Tooling cost (single cavity)	INR 80k to 5 lakh	INR 3 to 15 lakh	Low volume: GDC
Dimensional tolerance	+/-0.3 to +/-0.6 mm	+/-0.1 to +/-0.3 mm	Tight tolerances: HPDC
Part weight range	0.3 kg to 50 kg	0.05 kg to 10 kg	Heavy parts: GDC
Surface finish as-cast	Ra 3.2 to Ra 6.3	Ra 1.6 to Ra 3.2	Cosmetic parts: HPDC
Annual volume breakeven	Up to ~20,000 units	5,000 units and above	Depends on part
Insert/core options	Sand cores available	Metal inserts only	Complex internal: GDC

Material Properties: Which Process Produces Better Mechanical Performance?

GDC parts in ADC12 typically achieve tensile strength of 200 to 240 MPa and elongation of 1.5 to 3.0 percent in the as-cast condition. The slower solidification rate in gravity casting produces a slightly coarser grain structure than HPDC but with fewer micro-voids, which is beneficial for fatigue resistance in cyclic load applications.

HPDC parts in the same ADC12 alloy typically show tensile strength of 220 to 250 MPa with elongation of 1.0 to 2.0 percent. The rapid solidification under pressure produces a fine grain structure at the surface skin but can trap gas in the core of thicker sections. This is acceptable for most housings and brackets but may require specification of vacuum-assisted HPDC for safety-critical structural parts.

Cost Comparison at Different Production Volumes

Annual Volume (units)	GDC Total Cost/Part (est.)	HPDC Total Cost/Part (est.)	Lower Cost Process
500	INR 320 to INR 480	INR 450 to INR 700 (tooling heavy)	GDC
2,000	INR 260 to INR 380	INR 280 to INR 420	Comparable
10,000	INR 220 to INR 320	INR 160 to INR 240	HPDC
50,000	INR 200 to INR 300	INR 110 to INR 170	HPDC
100,000+	GDC capacity limited	INR 90 to INR 140	HPDC decisively

Note: Estimates assume ADC12 alloy, medium-complexity single-cavity tooling, standard CNC finishing. Industry estimate.

When to Choose GDC Over HPDC

Choose gravity die casting when the part weighs more than 3 kg and wall thickness in the critical section exceeds 6 mm. Pressure-tight components such as hydraulic manifolds, pump bodies and compressor housings benefit from GDC’s lower porosity in thick sections. If annual volume is below 5,000 units, GDC’s lower tooling cost typically makes it more economical over the programme life.

GDC is also the better choice when sand cores are needed to produce complex internal passages that are impossible to form with steel inserts alone. Agricultural equipment housings, electric motor end-shields and large industrial brackets are classic GDC applications in the Pune industrial market.

When to Choose HPDC Over GDC

HPDC is the right process when wall thickness is below 2.5 mm, annual volume exceeds 10,000 units, and tight tolerances are required on mating surfaces. Automotive engine covers, ECU housings, alternator brackets and structural extrusion dies are typical HPDC parts produced in the Pune belt. The short cycle time and near-net-shape output reduce total manufacturing cost at high volumes despite the higher tooling investment.

For components requiring post-casting CNC machining on sealing faces or precision bores, HPDC’s tighter as-cast tolerances reduce machining stock and cycle time, lowering secondary processing cost.

Choosing a Casting Supplier in Pune for Either Process

Plasma Aluminium Diecasting near the Chakan industrial belt offers both HPDC and gravity die casting under one roof, which is a genuine advantage for programmes where process selection is still under discussion or where a part family spans both processes. The team can conduct DFM analysis and provide process-specific quotations for the same part to help procurement and engineering teams make an informed decision before tooling is committed.

Proximity to Chakan MIDC, Talegaon, Ranjangaon and Moshi industrial clusters makes logistics planning straightforward for buyers operating across multiple sites in the Pune belt.

FAQ: Gravity Die Casting vs High Pressure Die Casting

Q 1 : Which process is better for aluminium wheel manufacture?

Low pressure die casting (LPDC) is the standard for aluminium wheels rather than GDC or HPDC. LPDC fills the die from below under controlled pressure of 0.5 to 1.5 bar, producing very low porosity in the safety-critical spoke and hub sections. GDC is occasionally used for small-batch or prototype wheels.

Q 2: Can the same alloy be used for both GDC and HPDC?

ADC12 and A380 alloys work in both processes. However, alloys with higher silicon content such as ADC12 are preferred for HPDC because of superior fluidity at the high injection velocities involved. GDC can accommodate a wider range of alloys including LM24 and LM25 (BS equivalents).

Q 3: What is the lead time for GDC tooling versus HPDC tooling?

GDC tooling from simple steel moulds typically takes 2 to 4 weeks versus 4 to 8 weeks for HPDC dies. GDC tools are generally less complex because operating pressures are much lower, reducing the precision machining demands on the die block and insert faces.

Q 4: Which process produces better surface finish on a visible face?

HPDC produces better as-cast surface finish on visible faces because of the rapid fill and high injection pressure which replicates the polished die face. GDC surface finish is adequate for painted or coated parts but HPDC is preferred for Class A visible surfaces that will be used without a heavy coating.

Q 5 : How do I know which process my part needs?

Submit a 2D or 3D drawing to a DFM review at a supplier such as Plasma Aluminium Diecasting. The key deciding factors are wall thickness, annual volume, weight, porosity requirements and dimensional tolerance. Most manufacturers can give a clear recommendation within 48 hours of receiving the drawing.

Conclusion

The gravity die casting vs high pressure die casting decision ultimately comes down to four variables: annual production volume, part wall thickness, dimensional tolerance requirement and budget for tooling. For volumes above 10,000 units and walls below 2.5 mm, HPDC is almost always the more economical choice over the programme life. For lower volumes and structurally critical thicker-section parts, GDC provides better porosity control at lower tooling cost.

Submit an RFQ with your 2D drawing and volume forecast to the Plasma team will provide process-specific quotations for both options where applicable.
